# 3D Navigation

Localize and plan on a point-cloud map built with 3D SLAM.

When a flat 2D grid isn't enough — think ramps, split levels, or anything where height matters — you navigate against the **point-cloud map** you captured with [3D SLAM](/full-autonomy-guidelines/features/mapping-slam.md) instead. 3D navigation localizes the robot against that `.pcd` and plans paths over it. (For everyday flat, single-floor spaces, [2D Navigation](/full-autonomy-guidelines/features/navigation.md) is simpler.)

Two pieces come up together: **ICP localization**, which matches the live LiDAR against the saved point cloud to track where the robot is, and the **PCT planner**, which plans a route from there to a goal. One thing to design around: this **localizes and plans only — it doesn't drive the robot**. A separate motion controller consumes the planned path, so pair it accordingly.

### In the portal

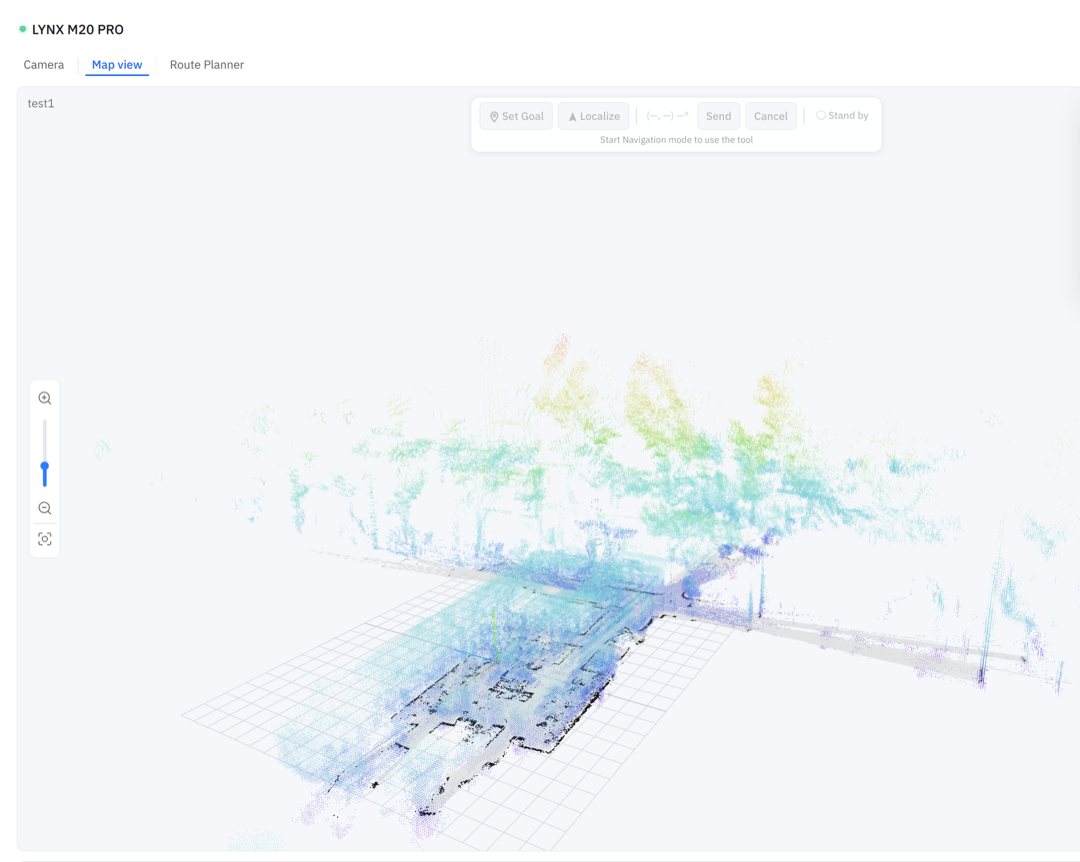

The [OpenMind portal](https://portal.openmind.com) lets you load a 3D (point-cloud) map and set navigation goals against it from the machine's autonomy view, the same way you would for a 2D map. In **Machine Teleops → Robot Settings → Navigation Mode**, choose **3D Navigation** and pick a saved 3D map.

<img src="https://2120135774-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Ft8vMsruGqqhYpVx9qhd5%2Fuploads%2Fgit-blob-d92a534e7afa908d4d3e58eb70b502cadb5be30e%2F3D-slam-map.png?alt=media" alt="" height="383" width="480">

### Before you start

* You have a map with a saved geometry **`.pcd`** — meaning it was built with **3D SLAM** or **3D Full**. A **3D Color** map is view-only and has no navigable cloud, so it won't work here.
* The robot type supports 3D (`slam_3d_supported` in `GET /status`). A real Go2 doesn't — its 3D stack is simulation-only, so 3D navigation on Go2 is a sim feature. See [Robot & simulation support](/full-autonomy-guidelines/features/robot-support.md).
* **SLAM and navigation are both stopped.**

### Running it

Start it against a 3D map:

```bash
curl -X POST http://<robot>:5000/start/nav3d \
  -H 'Content-Type: application/json' \
  -d '{"map_name": "warehouse"}'
```

The planner listens for goal poses on its goal topic (`/goal_pose` by default) and publishes the path it finds. Send goals from your integration or the portal. When you're done:

```bash
curl -X POST http://<robot>:5000/stop/nav3d -H 'Content-Type: application/json' -d '{}'
```

### Parameters

`POST /start/nav3d`

| Parameter    | Type   | Required | Default      | Description                            |
| ------------ | ------ | -------- | ------------ | -------------------------------------- |
| `map_name`   | string | yes      | —            | A map with a saved `.pcd`              |
| `scene`      | string | no       | `Isaacsim`   | Tomography scene config                |
| `goal_topic` | string | no       | `/goal_pose` | Topic the planner listens on for goals |
| `goal_layer` | int    | no       | `0`          | Tomogram layer index for the goal      |

### If something goes wrong

* **`400`** — SLAM or navigation is running, or 3D nav is already up. Stop the other one first.
* **`404`** — the map has no `.pcd`; it wasn't saved during 3D SLAM.
* **`400` unsupported** — the robot type has no 3D stack.

For system endpoints like `GET /status` and base control, see the [Autonomy API Overview](/full-autonomy-guidelines/api_endpoints.md).


---
